Function:(1) squeeze juice from fruit and vegetable;(2) separate liquid from solid;(3) press to dry material;(4) compress material volume, reduce material weight;(5) dispose sewage, kitchen waste, farm and animal rubbish......
Factory supply vegetable screw press fruit solid-liquid separator machine details
Factory supply vegetable screw press fruit solid-liquid separator machine
Product Description
1. Function
1) squeeze juice from fruit and vegetable;
2) separate liquid from solid;
3) press to dry material;
4) compress material volume, reduce material weight;
5) dispose sewage, kitchen waste, farm and animal rubbish......

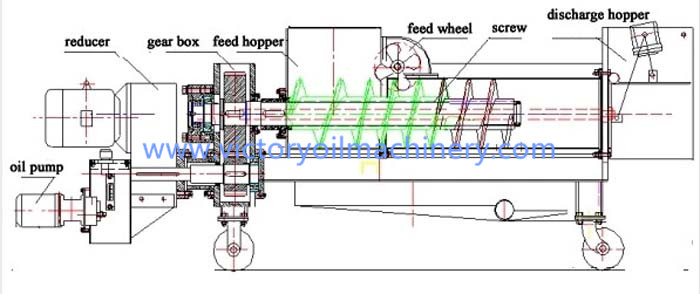

2. Working principle
screw running can press and push the materials ahead. By adjusting screw pitch and angle, the materials volume reduces, and liquid outflows from mesh. So the water material is squeezed to dry.
3.The following are our normal models and parameters:
Product Description
1. Function
1) squeeze juice from fruit and vegetable;
2) separate liquid from solid;
3) press to dry material;
4) compress material volume, reduce material weight;
5) dispose sewage, kitchen waste, farm and animal rubbish......
2. Working principle
screw running can press and push the materials ahead. By adjusting screw pitch and angle, the materials volume reduces, and liquid outflows from mesh. So the water material is squeezed to dry.
3.The following are our normal models and parameters:
| Model | Power | Weight | Dimension(mm) | Description |
| SDY120P5 | 3.5 KW | 568 KG | 1450*450*1200 | All 304 stainless steel, moveable wheel (option), pneumatic back pressure (adjustable) |
| SDY180P10 | 5.5 KW | 789 KG | 2100*510*1240 | All stainless steel |
| SDY250P5 | 7.5 KW | 1256 KG | 2230*600*1450 | All 304 stainless steel, pneumatic back pressure (adjustable) |
| SDY350 | 15 KW | 1890 KG | 2890*680*1800 | To be customized |
| SDY400 | 20 KW | 2400 KG | 3300*700*2200 | 304 stainless steel for the part touching materials |
| SDY500 | 25 KW | 3100 KG | 4100*710*2340 | 304 stainless steel for the part touching materials |
| SDY600 | 30 KW | 4120 KG | 5500*900*2300 | 304 stainless steel for the part touching materials |
| SDY800 | 50 KW | 10500 KG | 7100*980*2500 | 304 stainless steel for the part touching materials |
| SDY800M | 55 KW | 11350 KG | 7800*1500*1880 | Capacity is 50T/h |
4. Characteristic
1) better for fibre materials;
2) high efficiency, low power consumption, low failure rate;
3) continuous working without people caring and attending;
4) wide use scope;
5) to be customized according to materials.
5. Use scope
5.1. Food industry:
1) Fruit and vegetable juice squeeze and extraction
e.g.: apple, pear, peach, grape, orange, lemon pineapple, litchi,strawberry, blueberry,pomegranate, coconut, mango......
e.g.: cabbage, beet, carrot, onion, mushroom, pepper, ginger, celery, spinach, asparagus, lettuce......
2) Dehydration and leach
e.g.: coffee dreg leach, tea dreg leach, seafood dehydratio
5.2. Medicine and Chemical Industry
e.g.: Chinese medicine dreg leach, chemical solid-liquid separation,painting slag disposal......
5.3. Agriculture and Farm and Animal Industry
e.g.: animal dung dehydration disposal, grass and plant dehydration disposal......
5.4. Paper Industry
e.g.: recycled paper pre-disposal......
5.5. Garbage Disposal
6. Disposal Purpose
1) Separate solid and liquid to obtain the wanted part.
2) Dehydration before roasting can reduce roasting energy consumption.
3) After dehydration, burning materials will bring lower slag discharge, or be easier to buryand recycle. It is better for environment.
4) Press dry materials to reduce materials weight.
