High-efficiency raw grain, grain belt conveyor, soybean peanut corn belt conveyor
1. Product description

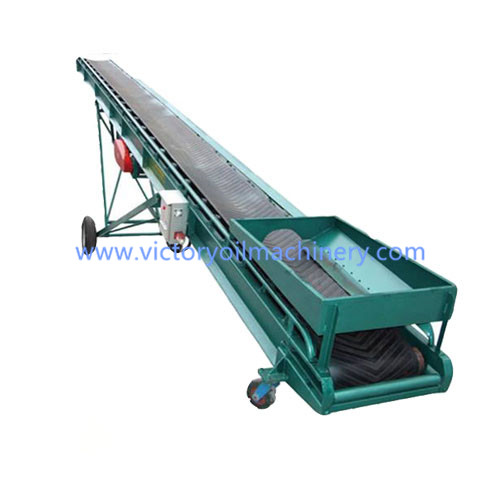

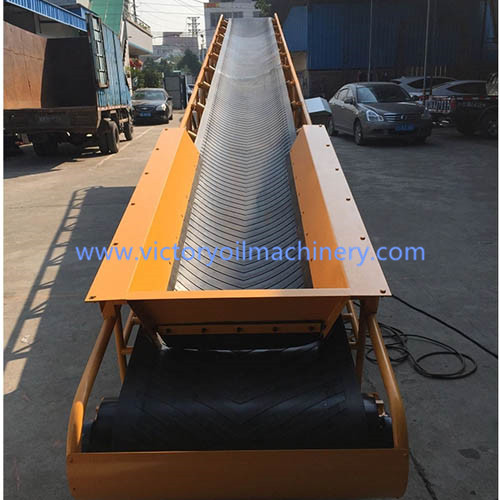

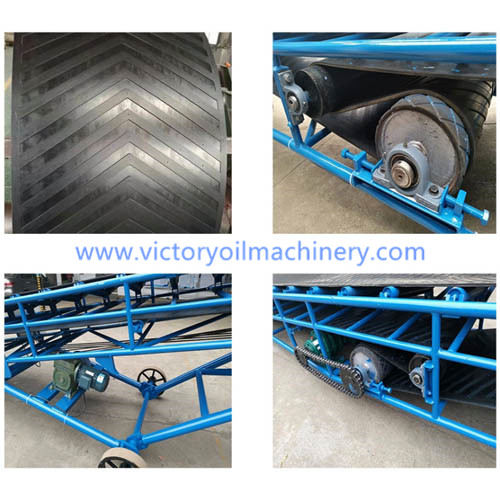

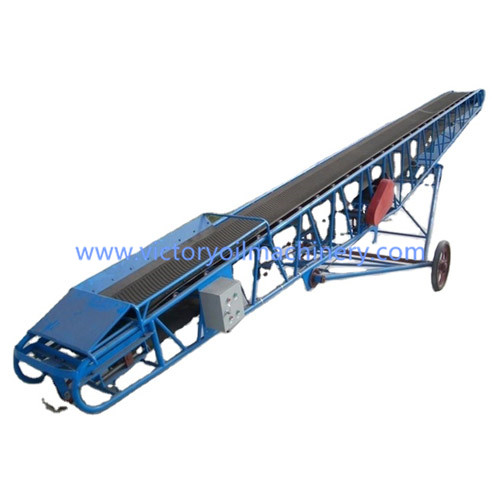

Belt conveyor is a machine that continuously conveys materials. The belt works under the action of friction to transfer material. The belt conveyor is mainly composed of a frame, a conveyor belt, a belt pulley, a tensioning device, a transmission device, etc. It is an important conveying machinery in the oil processing industry
2. Features
1) The belt conveyor is advanced, simple in structure and easy to maintain
2) High transmission capacity and long transmission distance.
3) Widely used for grain transportation: soybean, peanut, rapeseed, peanut and other granular materials or block materials or packaging materials.
4) In many cases, it is a very important part of non-standard machinery.
3. Work criteria

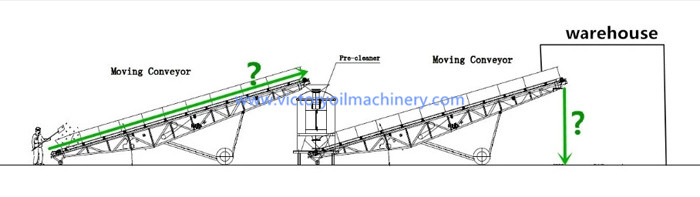

A material transfer process is formed between the initial feeding point and the final unloading point on a certain conveying line. It can not only transport scattered materials, but also transport finished products. , It can also cooperate with the technological process requirements in the production process of various industrial enterprises to form a rhythmic assembly line.
4. Product Application

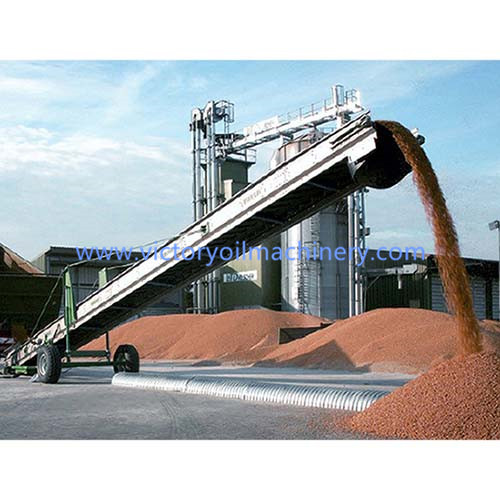

We have various types of hopper belt conveyors, such as 400, 500, 650, 800, 1000, 1200, etc. It is widely used in food processing industry, oil processing industry, chemical industry, etc.
5. Technical parameters
1. Product description
Belt conveyor is a machine that continuously conveys materials. The belt works under the action of friction to transfer material. The belt conveyor is mainly composed of a frame, a conveyor belt, a belt pulley, a tensioning device, a transmission device, etc. It is an important conveying machinery in the oil processing industry
2. Features
1) The belt conveyor is advanced, simple in structure and easy to maintain
2) High transmission capacity and long transmission distance.
3) Widely used for grain transportation: soybean, peanut, rapeseed, peanut and other granular materials or block materials or packaging materials.
4) In many cases, it is a very important part of non-standard machinery.
3. Work criteria
A material transfer process is formed between the initial feeding point and the final unloading point on a certain conveying line. It can not only transport scattered materials, but also transport finished products. , It can also cooperate with the technological process requirements in the production process of various industrial enterprises to form a rhythmic assembly line.
4. Product Application
We have various types of hopper belt conveyors, such as 400, 500, 650, 800, 1000, 1200, etc. It is widely used in food processing industry, oil processing industry, chemical industry, etc.
5. Technical parameters
| Belt width(mm) | Length (m) / Power (KW) | Conveying Speed (m/s) | Capacity (t/h) | ||
| 400 | ≤12/2.2 | 12-20/2.2-4 | 20-25/4-7.5 | 1-2.0 | 30-60 |
| 500 | ≤12/3 | 12-20/3-5.5 | 20-30/5.5-7.5 | 1-2.0 | 40-80 |
| 600 | ≤12/4 | 12-20/4-5.5 | 20-30/5.5-11 | 1-2.0 | 80-120 |
| 800 | ≤10/4 | 10-15/4-5.5 | 15-30/5.5-15 | 1-2.0 | 120-200 |
| 1000 | ≤10/5.5 | 10-20/5.5-11 | 20-40/11-22 | 1-2.0 | 200-320 |
| 1200 | ≤10/7.5 | 10-20/7.7-15 | 20-40/15-30 | 1-2.0 | 300-480 |
