YZCL series cooker is a main equipment in oil production, mainly used for the cooking of vegetable oil seed. By moisturizing, steaming and cooking, the flaked seed turn into cooked flakes, which fulfills the requiremnt of prepressing and improves the
Vertical?oil seed?cooker?equipment,Soybean Peanut cooking machine details
Vertical Oil Seed Cooker Equipment, Soybean Peanut Cooking Machine

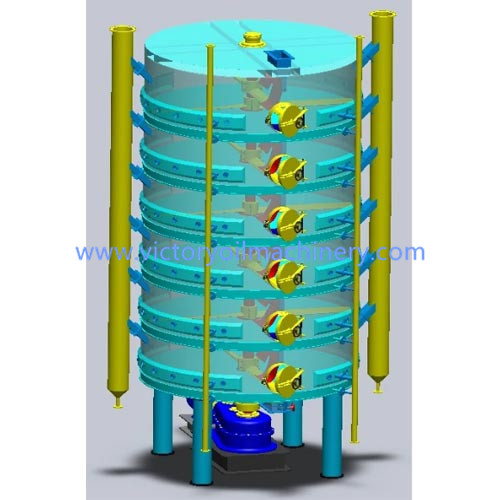

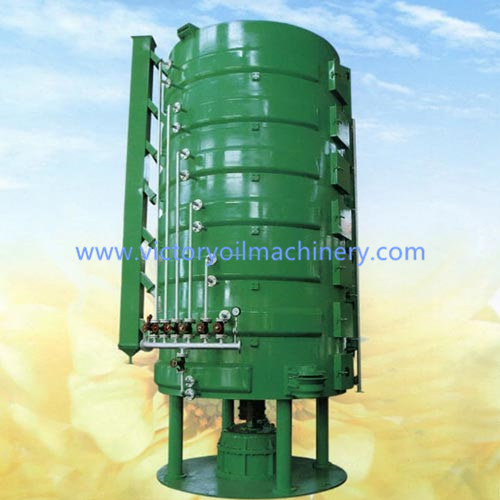

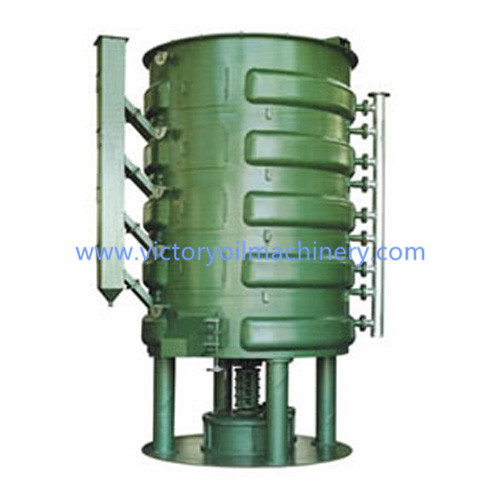

Oil Seeds Steam Cooker (YZCL Series)
YZCL series cooker is a main equipment in oil production, mainly used for the cooking of vegetable oil seed. By moisturizing, steaming and cooking, the flaked seed turn into cooked flakes, which fulfills the requiremnt of prepressing and improves the quality of oil.
1. Product description
YZCL steaming cooker is the equipment that makes green cakes after strip plate into meal after wet and cooked for meeting the technical requirement of pressing or extracting.
This equipment can be also used as soften cooker. The oil materials are soften, then this can improve the quality of strip plate, oil output rate and the quality of crude oil. It' s perfect choosing for the preliminary press of the vegetable oil factories.
2. Features
1) It is used in cooking for vegetable oil-bearing materials.
2) It changes green oil-bearing materials into mature oil-bearing materials by means of moistening, heating, steaming and cooking so as to get oil and improve its quality.
3) It is also suited to cooking for other materials in foodstuff, medicines and chemicals.
3. Technical parameters
YZCL series cooker is a main equipment in oil production, mainly used for the cooking of vegetable oil seed. By moisturizing, steaming and cooking, the flaked seed turn into cooked flakes, which fulfills the requiremnt of prepressing and improves the quality of oil.
1. Product description
YZCL steaming cooker is the equipment that makes green cakes after strip plate into meal after wet and cooked for meeting the technical requirement of pressing or extracting.
This equipment can be also used as soften cooker. The oil materials are soften, then this can improve the quality of strip plate, oil output rate and the quality of crude oil. It' s perfect choosing for the preliminary press of the vegetable oil factories.
2. Features
1) It is used in cooking for vegetable oil-bearing materials.
2) It changes green oil-bearing materials into mature oil-bearing materials by means of moistening, heating, steaming and cooking so as to get oil and improve its quality.
3) It is also suited to cooking for other materials in foodstuff, medicines and chemicals.
3. Technical parameters
Type | YZCL12X4 | YZCL150X5 | YZCL180X5 | YZCL210X5 | YZCL250X5(6) | YZCL250X7 | YZCL300X5(6) |
Capacity | 15-20 | 25-30 | 35-50 | 50-80 | 80-120 | 140-160 | 170-190 |
The main be pressed element | Q235-A | Q235-A | Q235-A | Q235-A | Q235-A | Q235-A | Q235-A |
Design pressure | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 |
Design temperature | 168.2 | 169.6 | 169.6 | 164 | 164 | 164 | 164 |
The most working pressure | 0.54 | 0.54 | 0.54 | 0.54 | 0.54 | 0.54 | 0.54 |
Corrosion degree | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Volume | 0.44 | 0.65 | 1.31 | 1.99 | 2.7(3.24) | 3.78 | 3.9(4.68) |
Heating area | 7.6 | 14.5 | 19.4 | 25 | 34.24(41.09) | 47.94 | 57.5(69) |
International diameter | 1200 | 1500 | 1800 | 2100 | 2500 | 2500 | 3000 |
Tier | 4 | 5 | 5 | 5 | 5(6) | 7 | 5(6) |
Spindle | 32 | 32 | 32 | 32 | 20 | 18 | 18 |
Reducer velocity | 1: 22.5 | 1: 30 | 1: 30 | 1: 30 | 1: 48.5 | 1: 53 | 1: 53 |
Reducer type | J22 | C032A | C032A | TBSZ30 | ZSL-40 | ZT760 | ZT-760 |
Motor type and output |
Y160M-6 7.5kw |
Y200L2-6 18.5kw |
Y200L2-6 22kw |
Y225M-6 30kw |
Y250M-6 37kw Y280S-645kw |
Y280S-6 45kw |
Y280S-6 45kw Y280M-6 55kw |
Overall dimensions |
2233X1654 X2710 |
2175X2075X 3850 |
2774X2300 X4250 |
2900X2440 X4250 |
4678(5328) | 5986 | 4678(5328) |
Weight | 3100 | 5850 | 7200 | 9400 | 13600(15400) | 17300 |
