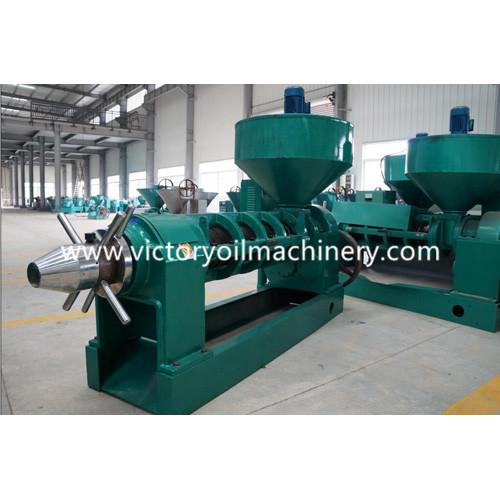

YZYX180A Screw Oil Press Machine

YZYX180A Screw Oil Press Machine

Brand: Henan Victor Machinery Equipment Co.,Ltd
Product origin: Made In China
Product No: Oil Press Machine-27

The product is characterized by small investment, large output, simple matching, easy maintenance and strong adaptability. Compared with similar machines in the market, it has significant advantages of more cost-effective.

Send Email

YZYX180A Screw Oil Press Machine details

1. YZYX180 Screw Oil Press Introduction

YZYX180 screw oil press is a larger product developed by our company on the basis of constantly summarizing production practice experience in order to meet the development needs of oil processing industry.Its main features are:The processing capacity is large, the pressing stroke of the blank is long in the pressing chamber, the pressing chamber pressure is further improved, so as to improve the oil production efficiency and reduce the residual oil rate of the dry cake.At the same time, the fragile parts are made of high quality alloy steel, which significantly improves the service life.
Among them, YZYX180B is the basic two- level press type (pressing cage length L1005), YZYX180C is the extended three-level press type, and YZYX180 is the extended four-level press type (both pressing cage length are L1175).All of them are suitable for pressing rapeseed, cottonseed, soybean, peanut kernel, flax seed, tung seed, sunflower seed, palm kernel and other plant oils.
The product is characterized by small investment, large output, simple matching, easy maintenance and strong adaptability. Compared with similar machines in the market, it has significant advantages of more cost-effective, especially suitable for small and medium-sized oil processing plants.
This product conforms to the Technical Conditions of Agricultural Screw Oil Press JB/T9793-2013, the machinery industry standard of the People's Republic of China.

2. Main Properties of 180A Screw oil press machine

The following performance parameters refer to medium or above quality level raw materials. in the cleaning, peeling (separation), crushing (rolling embryo), steaming and frying and other reasonable process flow, complete auxiliary equipment, normal operation, using hot pressing method (pressing once) continuous production can achieve the performance index.

Raw Material Name	Capacity(T/24H)	Dry cake residual oil (%)	Oil extraction rate（%）	Power consumption per ton（KW·H/T）
Rapeseed	≥16	≤7.4	≥84	≤34
Cottonseed	≥15	≤6.3	≥80	≤54
Soybean	≥14	≤6.2	≥69	≤51
Peanut Kernel	≥15	≤6.3	≥92.5	≤34

Remarks:① Due to the different types, quality and oil content of oil in different regions, as well as differences in operating conditions and other factors, it is normal if the actual results are different from the indicators listed in the table.

②Daily processing capacity (t/24h) refers to the processing capacity of normal hot pressing once. If it is pressed twice or three times (such as cold pressing), the processing capacity is one-half or one-third of its value. By analogy, the more squeezing passes, the lower the processing capacity.

3. Technical Parameters of 180A Screw oil press machine

Model	YZYX180B	YZYX180C、 YZYX180
Speed of screw shaft(r/min)	37-44
Power(kW)	37-45(Six pole machine)
Pushing power(kW)	0.55（With Feeding mechanism）
Overall Dimensions(mm)(Length × Width × Height )	2500×1008×1726(Feeding mechanism)	2670×1008×1726 (Feeding mechanism)
Overall Dimensions(mm)(Length × Width × Height )	2500×1008×1522 (Iron bucket)	2670×1008×1522 (Iron bucket)
Weight (Kg/ Set)		1835（Feeding mechanism）/1780(Iron bucket)

Remarks:The single weight does not include the motor

4. Advantages of 180A Screw oil press machine

The internal structure of the system is optimized on the basis of summing up practical experience.
Compared with ordinary oil press machines, the pressure inside the chamber of the oil press of this machine is higher and the distance of embryo in the chamber is longer, which improves the oil extraction efficiency and reduces the residual oil rate.
The fragile parts of the equipment are made of high quality alloy steel, which greatly improves the overall service life of the equipment.

5. Our Services

Pre-Sale Service
1.Online 24 hours .Your inquiry will be replied quickly via email and you can also ask questions via any online chat tool (WeChat, Whatsapp, Skype, Viber, QQ).
2.Professional and patient introduction, detailed pictures and working video to display the machine.
Sale Service
1.Test and inspect each machine seriously .
2.Send the picture of the machine you ordered to confirm whether the machine is in normal condition and then pack it in standard export wooden cases.
3.Delivery: Deliver by sea.Take it to the harbor.We'll tell you the time of shipment and arrival.Finally, all the original documents will be sent to you free of charge by Courier.
After-Sales Service
1.Free insurance for goods.
2.24 hours online to solve any problem . Supply you English manual book and technical support,maintain and install video to help you solve the problem, or dispatch worker to your factory.

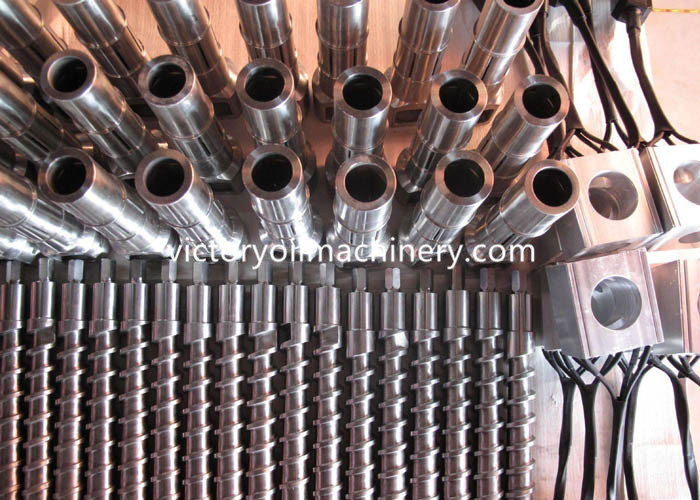

6. Wearing Parts of 180A Screw oil press machine

7. Packing And Delivery
