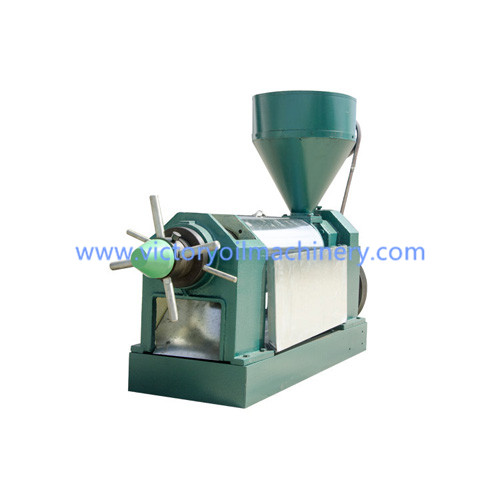

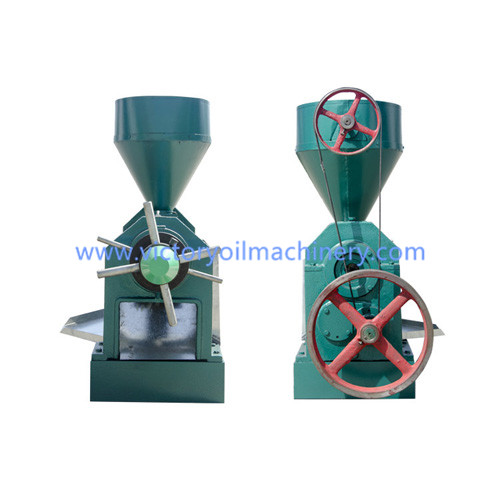

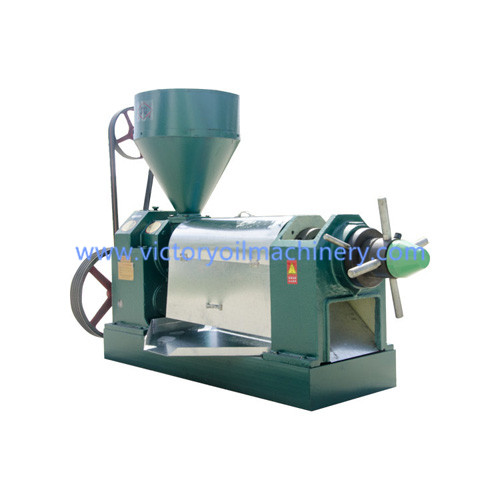

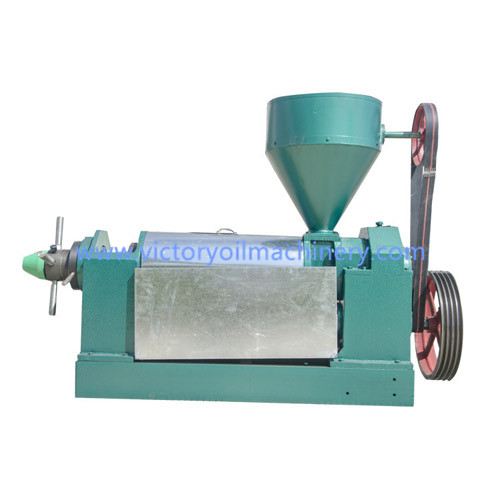

YZYX120A Screw Oil Press Machine details

1. YZYX120A Screw Oil Press Introduction

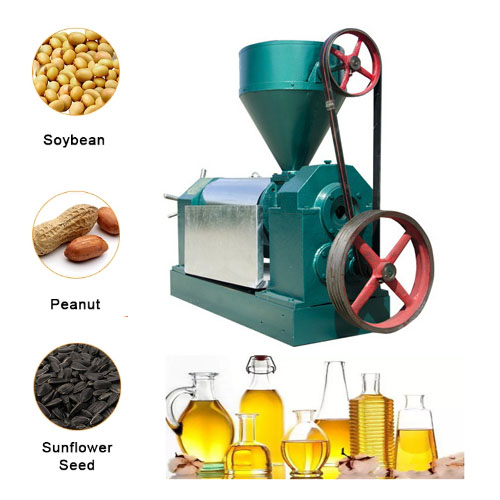

Based on the continuous summary of practical experience in the production of similar models,YZYX120 Screw Oil Press is the latest series of small Screw Oil Press products independently developed by our company.To meet the needs of different customers.This machine inherits the advantages of various screw oil presses, and has the features of beautiful shape, stable and reliable operation, high output, low energy consumption, simple operation and maintenance, low operating cost, etc.Suitable for new and old users to choose.and it is an ideal machine for processing rapeseed, peanut kernel, soybean, cottonseed and other vegetable oils.

2. Structure Characteristics And Working Principle of 120A Screw Oil Press Machine

2.1 Structure

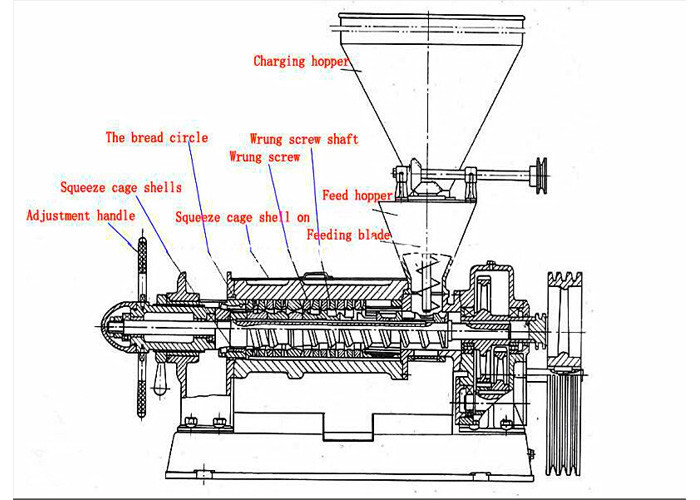

The machine is composed of five parts: reduction section, feeding section, bar cage, worm shaft and support base. See the attached picture.

Reducer structure: Separate the feed port from the reducer box, increase the adjustment range of cake thickness, adopt two-stage cylindrical gear reduction, and the shaft center faces the sub-box body design, which greatly reduces the maintenance intensity.The second pair of gears is driven by helical gears, which enhances the carrying capacity. See the attached figure.

Worm shaft movement: It is driven by a motor through a V-shaped belt deceleration to the deceleration mechanism.

Hopper feed shaft: A movement is separated from the belt pulley shaft of the reducer, and the speed of the feed shaft is obtained by the deceleration of the flat belt wheel and the bevel gear box, see the attached picture. The feeding mechanism is designed to meet the requirements of loose oil and more than twice pressings. For the oil that is hot-pressing once, a feeding hopper can be used.

Barrel structure:The barrel structure is designed with two-stage press and three-stage press. The two-stage pressing is a basic type, suitable for a variety of plant oils, using a one-time continuous hot pressing process, the effect is remarkable. With three-stage pressing, the pressure of the barrel is further increased, Properly operated, it is expected to obtain more excellent economic benefits, It is suitable for the old users who have accumulated experience and emphasize the dry cake residual oil.The cage bar adopts a combined small cage bar to increase the oil output line to meet the needs of different users.

2.2 Working Principle of 120A oil press

When the oil press is running, the pre-treatment raw material enters the barrel from the feeding hopper. Due to the the pressure generated by the sharp change in the volume of barrel from large to small, the thrust of the screw shaft, the resistance of the multi-petal arc curve in the pressure ring,the friction between the material embryo,The combined action generating strong pressure to squeeze the grease out of the material embryo and flow out from the oil gap between the cage bar and the pressure ring. The residue is squeezed into a cake from the end of the screw shaft and discharged.

1.Speed of screw shaft                         32～38r/min
2.Screw speed of pressing material      26～30r/min
3.Speed ratio of reducer                       8.947
4.Power                                                motor Y160L-4（15kw 1460r/min）
5.Overall dimensions(Length × Width × height (mm))
                                                             1890×570×1185 (Without electricity frame)
6.Single Weight                                    630kg(excluding motor)
7.Performance index:

Medium quality raw materials, in the cleaning, peeling (separation), crushing (rolling embryo), steaming and frying and other reasonable process flow, complete auxiliary equipment, normal operation, using hot pressing method (pressing once) continuous production can achieve the performance index.

The internal structure of the system is optimized on the basis of summing up practical experience.
Compared with ordinary oil press machines, the pressure inside the chamber of the oil press of this machine is higher and the distance of embryo in the chamber is longer, which improves the oil extraction efficiency and reduces the residual oil rate.
The fragile parts of the equipment are made of high quality alloy steel, which greatly improves the overall service life of the equipment.


5.  Our services of 120A Screw Oil Press Machine

Pre-Sale Service
1.Online 24 hours .Your inquiry will be replied quickly via email and you can also ask questions via any online chat tool (WeChat, Whatsapp, Skype, Viber, QQ).
2.Professional and patient introduction, detailed pictures and working video to display the machine.
Sale Service
1.Test and inspect each machine seriously .
2.Send the picture of the machine you ordered to confirm whether the machine is in normal condition and then pack it in standard export wooden cases.
3.Delivery: Deliver by sea.Take it to the harbor.We'll tell you the time of shipment and arrival.Finally, all the original documents will be sent to you free of charge by Courier.
If it is sent to you by express (DHL, TNT, fedex, etc.), we will tell you the tracking number after delivery.
After-Sales Service
1.Free insurance for goods.
2.24 hours online to solve any problem . Supply you English manual book and technical support,maintain and install video to help you solve the problem, or dispatch worker to your factory.

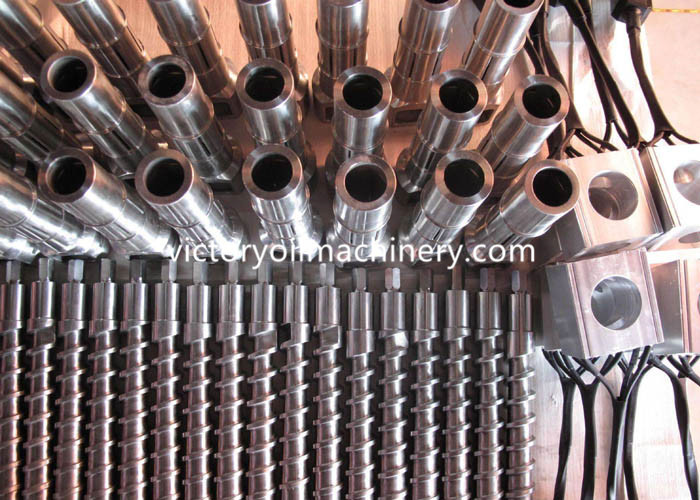

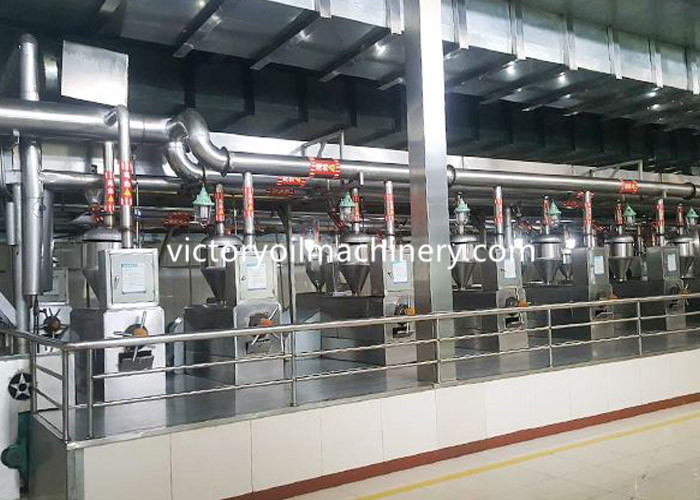

6. Accessories And Engineering Cases ofof 120A Screw Oil Press Machine

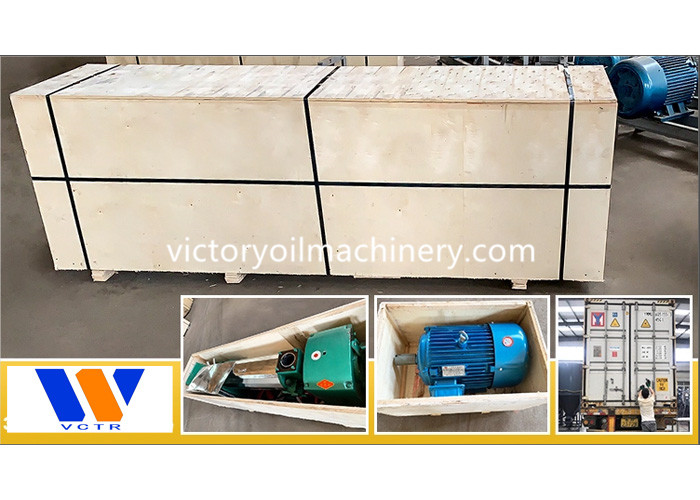

7. Package Pictrue of 120A Screw Oil Press Machine
