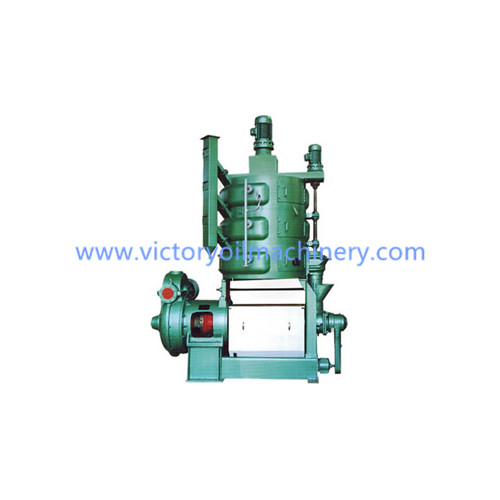

YZ200A-3 Screw Oil Press Machine
  • Henan Victor Machinery Equipment Co.,Ltd
  • Made In China
  • Oil Press Machine-30

This machine is suitable for extracting rapeseed, peanut, sesame, cottonseed, soybean, coconut, sunflower seed, corn germ and other vegetable oils. The remaining oil content is less than 6%. It can work continuously for a long time and has low failure

YZ200A-3 Screw Oil Press Machine details

1. YZ200A-3 Screw Oil Press Machine Summary

The machine is suitable for extract rapeseed, peanut, sesame seeds, cottonseed, soybean, coconut, sunflower seeds, corn germ such as plant oils, with material embryo steaming and frying, satisfy the above oilseeds before squeezing to the needs of different temperature, can automatically work continuously for a long period of time, good oil processing plant is the ideal equipment.
1. The main parts of this machine, such as the main shaft, worm, cage bar, gears, are all made of high-quality alloy steel and hardened. which can be durable despite high temperature and friction loss day and night.
2. Both steaming and frying is one of the features of this equipment. It can be adjusted according to the different temperature requirements of various oils before pressing, so as to obtain high-quality grease.
3. From feeding, steaming and frying to oil output and cake,is automatic and continuous work,simple management and labor saving. Sunflower seeds



2. Technical data of 200A-3 Screw Oil press Machine

Seed Name   Processing Capacity (Kg/24H) Oil Extraction
Rate (%)
Dry Cake Residual Oil (%)
Rapeseed 9000-12000 30-38 6-7
Peanut Kernel 9000-10000 38-45 5-6
Sesame 6500-7500 42-47 7-7.5
Cottonseed Kernel 9000-10000 30-33 5-6
Soybean 8000-9000 11-14 5-6
Sunflower Seeds 7000-8000 22-25 6-7
Rice Bran 6000-70000 10-14 6-7

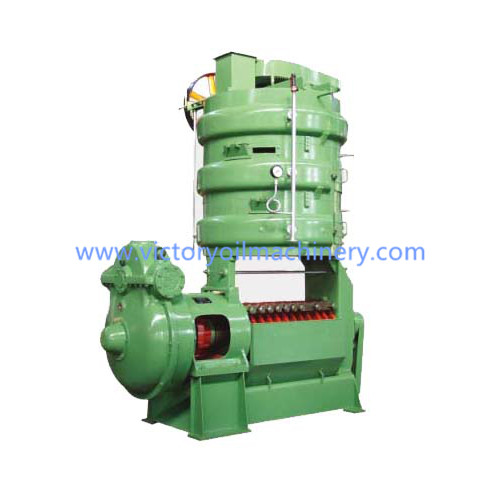

3. 202-3 Screw Oil Pre-press Machine Summary

202-3 Screw Oil Pre-press is a continuous screw oil press machine,

Suitable for pre-pressing--extraction or double pressing process in vegetable oil plant,and processing oil with high oil content such as peanut kernels, cottonseed kernels, rapeseed and sunflower kernels, tea seeds, tung seeds, and corn germ.


Processing Capacity 20-30T/24H(Take sunflower kernel or rapeseed as an example)
Cake Residual Oil   Around 13%(Under normal pretreatment conditions)
Motor Y225M-6, 1000 rpm, 30 kW, 220/380V, 50 Hz
Net Weight About 5500kg
Overall Dimensions 2900×1850×3640mm

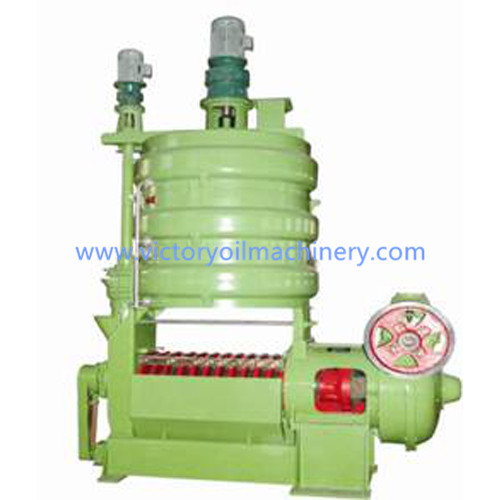

4. 204 Screw Oil Pre-press Machine Summary

204 Screw Oil Pre-press is a continuous screw oil press machine,

Suitable for pre-pressing--extraction or double pressing process in vegetable oil plant,and processing oil with high oil content such as peanut kernels, cottonseed kernels, rapeseed and sunflower kernels, tea seeds, tung seeds, and corn germ.


5. 204 Screw Oil Pre-press Machine Technical Data


Processing Capacity 40-50T/24H(Take sunflower kernel or rapeseed as an example)
Cake Residual Oil   Around 13%(Under normal pretreatment conditions)
Motor Y225M-6, 1000 rpm, 30 kW, 220/380V, 50 Hz
Net Weight About 5500kg
Overall Dimensions 2900×1850×3640mm

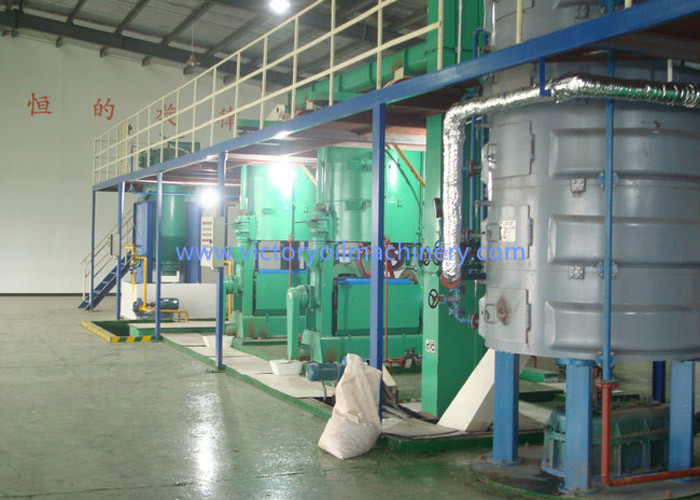

200-type oil press squeezes peanut production workshop
tag : Oil Press,Screw Oil Press,Oil Press Machine,Screw Oil Press M

YZ200A-3 Screw Oil Press Machine,This machine is suitable for extracting rapeseed, peanut, sesame, cottonseed, soybean, coconut, sunflower seed, corn germ and other vegetable oils. The remaining oil content is less than 6%. It can work continuously for a long time and has low failure
