Rice Wheat Corn Soybean And Other Food Crops Grain Dryer Machine
- Henan Victor Machinery Equipment Co.,Ltd
- Made In China
- Grain and oil storage-70
Features:1. Large precipitation range, the maximum precipitation range of a single machine can reach 25%.2. Strong adaptability, suitable for drying corn, rice, rapeseed and other materials everywhere.3.Dry thoroughly, evenly, slowly, fully and fully,
Rice Wheat Corn Soybean And Other Food Crops Grain Dryer Machine details
Rice Wheat Corn Soybean And Other Food Crops Grain Dryer Machine
Product Description
Product Description
| Model | WGH100 | WGH150 | WGH200 | WGH300 | WGH400 | WGH500 | WGH1000 |
|
Handling capacity （T/d） |
100 | 150 | 200 | 300 | 400 | 500 | 1000 |
| Reduction of water content(%) | 5～18 | ||||||
| The heating medium | Clean air | ||||||
| Hot air temperature(℃) | 65～160 | ||||||
| Maximum heating temperature of grain(℃) | 55 | ||||||
| Unevenness of drying(%) | < 2 | ||||||
|
Unit heat consumption (kj/kgH2O) |
5000～7000 | ||||||
| Coal Consumption (Standard Coal(kg/h) | 60～230 | 90～345 | 120～460 | 150～575 | 180～690 | 240～1000 | 300～1380 |
| Installation capacity | Depending on the environment, conditions, precipitation range and allocation | ||||||
| Overall dimensions(m×m) | 4×3 | 4×3 | 5×3.2 | 5.5×3.2 | 5.5×4 | 5.5×4.5 | 6×6 |
| Highly(m) | 6～10 | 8～15 | 13～17.5 | 14～18 | 14～19 | 15～20 | 16～22 |
Roduct Features
1.The precipitation range is large,single machine single maximum precipitation range can reach 25%.
2.It has strong adaptability and is suitable for drying all kinds of materials such as corn, rice and rapeseed in various areas.
3.Drying thoroughly, evenly, slow and sufficiently, cooling thoroughly, and the dried grain can be stored directly.
4. It uses clean air as drying medium, no pollution and good quality of grain after drying.
5.Low Energy Consumption and Cost Saving.
6.Can mechanized continuous operation, stable performance, easy to operate.

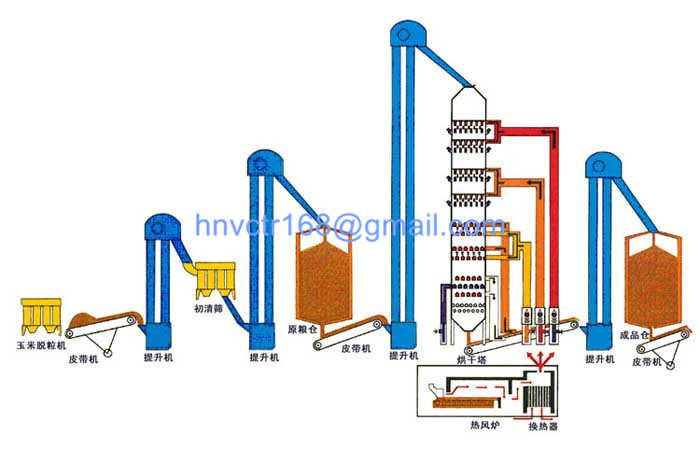

Working Principle
The wet grain that needs to be dried enters the grain dryer through the grain equalizing mechanism.
When the grain reaches the low level in the grain storage section, the hot air blower is started to supply hot air to dry the grain.
When the grain reaches the level in the grain storage section, the level device starts and sends out an electric signal to start the grain discharge motor to start the grain discharge.
When the grain reaches the high level in the grain storage section, the police will stop feeding.
At this time, the food rationing continued, and the level of grain began to decline.
When it fell to the middle level, it resumed to feed, so that the cycle proceeded.
Adjust the feed rate to keep the system in dynamic balance.
After the wet grain passes through the grain storage section and enters the air distribution section, it is evenly distributed in the ventilation ducts of the air distribution section, and the hot air flows outside the ventilation duct to heat the grain; then the grain flow and the hot air flow downward simultaneously into the drying section, heating the grain in the drying section to vaporize the grain moisture, and then vaporizing the grain moisture in the form of exhaust gas.
The grain is dried by discharging the waste gas from the corner box.
The dried grain is cooled down to the appropriate temperature in the cooling section and discharged from the discharging section through the hopper.
