Powered by circulation pumps, heating as medium, organic heat transfer oil flow out from boiler into equipments which need heat energy, transferring heat energy, and then flow back to boiler proper. The organic thermal oil flow through the whole syste
Oil Boiler details

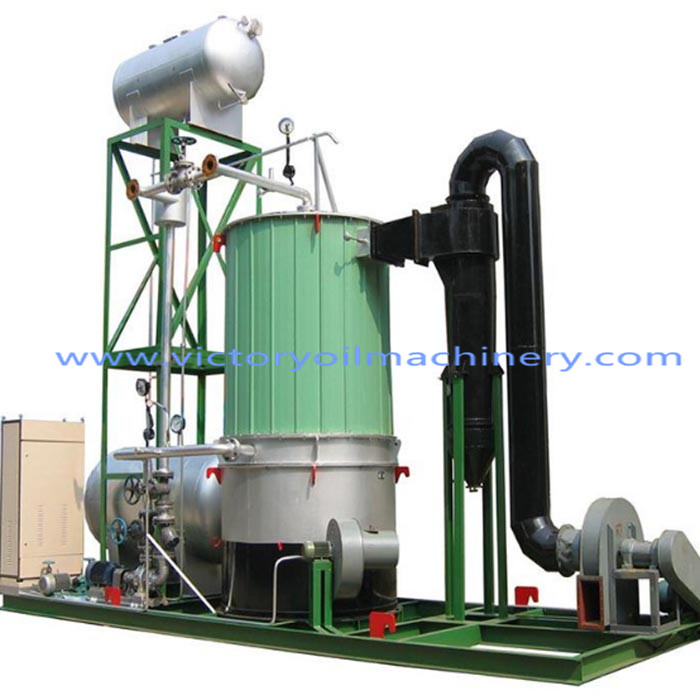

1. Wood firewood wood logs fire vertical structure thermal oil boilers for industrial applications
Boilers Show| Product name | YGL low pressure single drum vertical structure fix grate manual operation coal thermal oil boilers/ heaters |
| Product description | Powered by circulation pumps, heating as medium, organic heat transfer oil flow out from boiler into equipments which need heat energy, transferring heat energy, and then flow back to boiler proper. The organic thermal oil flow through the whole system and transfer heating energy to heat the equipment. |
| Title | vertical type coal burning boiler heater furnace heating hot oil circulation system |
| Model | YGL-120MA,YGL-230MA,YGL-350MA,YGL-470MA,YGL-700MA,YGL-930MA,YGL-1200MA,YGL-1400MA |
| Rated thermal power | 350kW, 500kW, 700kW, 1000kW,1200kW, 1400kW, 2000kW |
| Max working temperature | 280°c 320°c |
| Design fuels |
coal, charcoal, anthracite coal, coal powder, pulverized coal, lignite coal charcoal |
| Features |
1.Low pressure but high temperature, safe, high efficiency and saving energy. 2.Equipped with complete operation control and safe monitoring device, easily to be installed, operation and maintenance. 3.Thermal fluid oil runs in the whole working system, without contacting with airs, no emissions, no pollution, less heat loss, long working life, saving fuels and low running cost. 4.It can meet the requirement of different machines which needs various temperature in different processing manufacture. 5.It can control and adjust the temperature precisely, works stable, and widely applied in many industries and plants. |
| Appllication |
1.Chemical Industry -- polymerization industry ,oil industry, reaction tank,distillation ,enrichment 2. Plastic industry --- plastic and squeeze to finalize the design 3. Textile industry -- resin stenters ,dyeing machine and the dry room ,high temperature machine,roller. 4.Rubber industry - rubber vulcanization heating 5.Food industry -- cooking dry,vegetable oil refining 6.Wood industry -- heating to finalize the design of chipboard sandwich plate ,wamu board, fiber 7.Paper industry-multi-layer cardboard of packed carton box,dying and desiccation 8.Others-heating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry, reduction,concentration,dehydration,airconditioning industry.etc |
2. Technical Datas
Technical datas form of YGL low pressure single drum vertical structure fix grate manual operation coal thermal oil boilers/ heaters is as follows
|
|
YGL- 120MA |
YGL- 240MA |
YGL- 350MA |
YGL- 500MA |
YGL- 700MA |
YGL- 1000MA |
YGL- 1200MA |
YGL- 1400MA |
YGL- 2000MA |
|
|
Rated Thermal Power(Kw) |
120 | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 | 2000 | |
| Efficiency (%) | ≥75 | ≥80 | ||||||||
|
Max. Working temperature(℃) |
280/320 | |||||||||
|
Circulation Oil Volume(m³/h) |
12.5 | 20 | 30 | 40 | 60 | 80 | 100 | 100 | 100 | |
| Fuels | Coal, wood, firewood, wood logs | |||||||||
|
Dimensions (mm) |
D | 1150 | 1300 | 1700 | 1700 | 1960 | 2050 | 2160 | 2290 | 2620 |
| H | 2385 | 2650 | 3060 | 3475 | 3805 | 4415 | 4760 | 5445 | 6430 | |
| Weight (Kg) | 1560 | 1960 | 3520 | 3800 | 4900 | 6100 | 7500 | 8820 | 13800 | |

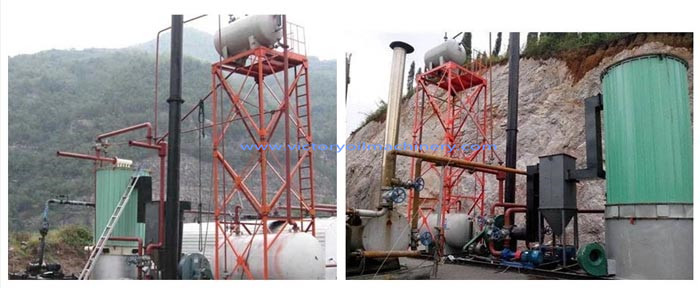

3. Case
